Concrete: Cast-in-place, Rebar, Precast

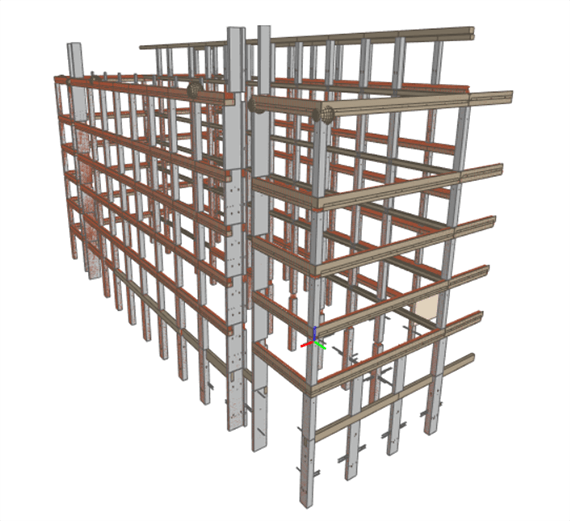

We provide 3D BIM Model & 2D Shop Drawings for Cast-in-situ concrete, Precast Concrete & Reinforced Concrete

The Model is used for: 1. Coordination with Other Trades 2. Creation of 2D Shop/Lift Drawings for CIP, Detailing of Precast Elements, Rebar shop drawings & Bar-Bending Schedule of Reinforced concrete 3. Extraction of Quantity Take-Off (Estimation).

Cast in Place Concrete elements: Foundation, Pile Cap, Grade Beam, Footing Penetration, Foundation Walls, slab on grade, floor slabs, beams, joist, metal deck, embeds, concrete curb, drop panels, structural roof opening, structural walls, shear walls, ramp, stairs, CMU walls, Reinforcement, sleeves, equipment pads etc.

Precast Concrete: Tilt-up Wall Panels, Hollow Core Slab, Joist, Pile, beams, columns, corbel, stairs, culverts, monolithic blocks, parapets & barriers.

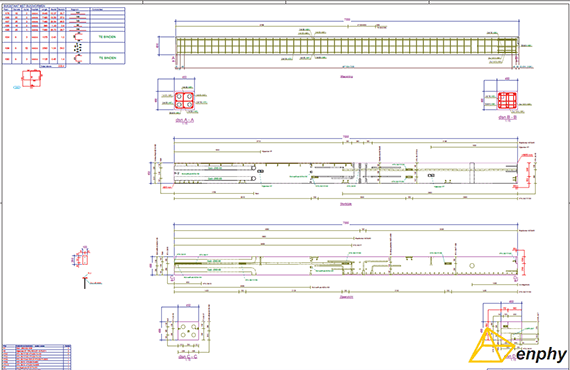

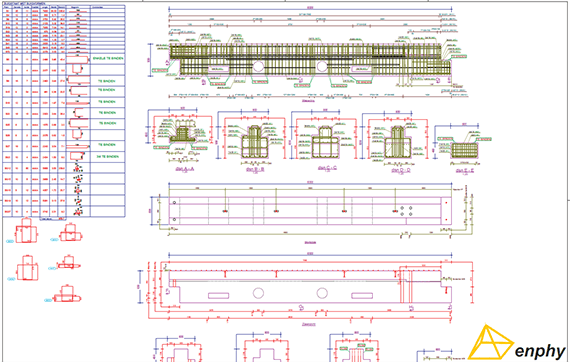

Reinforced Concrete: Pile & Pile CAP, Bottom Slab, Foundation Drawing, Stair Drawing, Beam, Column, Wall, Slab on Grade Drawing, Top Slab, Shop Drawings for Reinforcement with Bar-Bending Schedule (BBS).

Concrete Lift Drawings consists of the following drawings

  • Foundation Drawings
  • Slab on grade drawings
  • Wall & column arrangement
  • Slab arrangement drawings
  • Slab soffit drawings
  • Stair drawings
  • Framing plan drawings
  • Elevation Drawing
  • Section drawings, detail drawings, embed drawings
  • Quantity Take-Off

Software we use:

Contact us now

Contact us now for and cut down your cost and improve delivery.
